Arcserve 9000DR Series Appliance
Enterprise-grade disaster recovery and backup made simple

Key Features:

Ransomware Prevention Made Simple

• Implement quick disaster recovery for physical servers and cloud Windows / Linux instances.
• Spin up dozens of VMs on the appliance with up to 20 cores on Intel Xeon CPUs and up to 768GB DDR4-2400Mhz RAM.
• Protect VMware, Hyper-V, RHEV, KVM, Nutanix AHV, Citrix and Xen VMs with agentless and agent-based backup.
• Back up and recover Microsoft Office 365, UNIX, FreeBSD, AIX, HP-UX, Solaris, Oracle Database, SAP HANA and more, protecting your entire IT infrastructure from ransomware.

Secure Your Backups from Any Threat

• Keep your data and system backups safe with Sophos Intercept X Advanced for Server, preloaded and shipped on Arcserve Appliances.
• Stay protected against any threat, including unknown malware, with a deep learning neural network combined with signature-based protection from common threats.
• Prevent major hacking techniques, including credential harvesting, lateral movement and privilege escalation with exploit prevention.
• Stop ransomware attacks on backup data with CryptoGuard and master boot record attacks with WipeGuard.

Scale Without Limitations

• Enable safe business and IT growth with 11 configuration options that range from 12TB to 504TB of effective capacity per appliance.
• Keep up with data growth by expanding original capacity by up to four times with in-field, in-appliance Expansion Kits.
• Seamlessly scale up and out to the cloud with fully integrated hybrid cloud services.
• Reduce backup storage requirements up to 95% with built-in SSD drives and hyper-efficient global deduplication.

Eliminate Ransomware-induced IT Disruptions

• Quickly install the only “set it and forget it,” multi-layered anti-ransomware solution, proven to be deployable in under 15 minutes.
• Protect hundreds of systems with scalable, policy-based disaster recovery and backup management.
• Reclaim up to 50% more time to spend on strategic IT initiatives.
• Keep business and IT stakeholders informed with SLA reporting that includes recovery time objective (RTO) and recovery time actual (RTA) comparisons.

Gain Peace of Mind

• Remove the “do it yourself” complexity of orchestrating a cohesive data protection and cyber security strategy with one solution, from one vendor for backup, disaster recovery, high availability, security, hardware and cloud services.
• Recover data and Windows/Linux systems across hardware, cloud and hypervisors.
• Experience unparalleled ease of deployment and usability with a simple, wizard-driven setup.

Protect from Major Disasters

• Benefit from cloud economies of scale by storing backups and rapidly spinning up systems offsite in the Arcserve Cloud or private and public clouds, including Amazon® AWS, Microsoft Azure®, Eucalyptus® and Rackspace®.
• Reduce the need for dedicated bandwidth with builtin, WAN-optimized backup replication.
• Send copies of your sensitive data and systems off-site with proven tape drive and tape library integration.

A first and last line of defense against cyber-attacks

Arcserve backup appliances eliminate standalone, discrete products for threat prevention, ransomware disaster recovery and application availability.

A smarter, multi-layered solution is delivered by integrating onsite and offsite DR, backup and optional high availability with Sophos Intercept X Advanced for Server – proven endpoint protection that combines the industry’s top-rated malware detection and exploit protection.

Now You Can:

Deployments:

Flexible Deployment

Businesses of all sizes leverage Arcserve Appliances to streamline a wide variety of deployment scenarios:

• Single-site protection for physical or virtual systems, including x86 and non-x86
• Primary site protection combined with copy to Arcserve Cloud
• Cross-site protection between two sites
• Central appliance site with multiple branch offices
• Hybrid deployment with a combination of onpremises local, remote and cloud systems

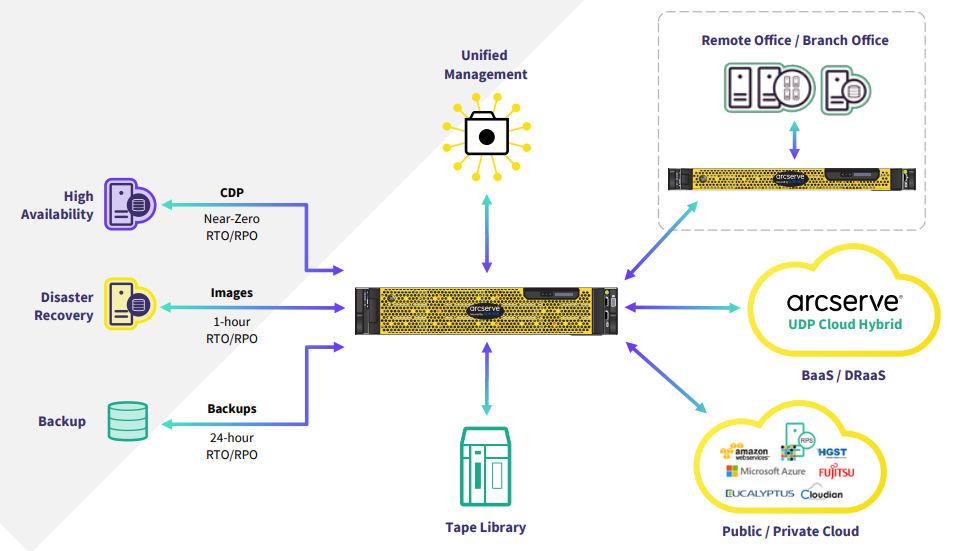

How It Works:

Arcserve Appliances streamline your environment with a wide variety of deployment scenarios, including: single-site, primary site, cross-site, central appliance site, and a hybrid combination of on-premises local, remote, and cloud systems. Each appliance is a self-contained, “set and forget” DR and backup solution architected with cloud-native capabilities, global source-based deduplication, multi-site replication, tape integration and automated data restore capabilities.

All appliances are fully-integrated with Arcserve UDP Cloud Hybrid, Arcserve UDP software, Arcserve Backup and Arcserve Replication and High Availability. The software is pre-installed on state-of-the-art hardware and delivered with a quick install kit and configuration wizard that makes them incredibly easy to deploy.

Protect Windows/Linux servers, virtual machines on VMware vSphere or Microsoft Hyper-V, data in Microsoft Exchange, SQL Server, Office 365, Oracle and other applications, as well as workloads in Amazon AWS and Microsoft Azure.

Performance:

Arcserve Appliances streamline your environment with a wide variety of deployment scenarios, including single-site, primary site, cross-site, central appliance site, and a hybrid combination of on-premises local, remote, and cloud systems. Each appliance is a self-contained, “set and forget” disaster recovery and backup solution architected with cloud-native capabilities, global source-based deduplication, multi-site replication, tape integration and automated data restore capabilities.

Its performance is unmatched, with models 9012, 9024 and 9048 delivering up to 20 TB/hour throughput based on global source-side deduplication with a 98% deduplication ratio. Arcserve Appliance models 9072DR, 9096DR, 9144DR, 9192DR, 9240DR, 9288DR, 9360DR and 9504DR deliver up to 76 TB/hour throughput based on global source-side deduplication with a 98% deduplication ratio.

	9072DR	9096DR	9144DR	9192DR	9240DR	9288DR	9360DR	9504DR
Effective Capacity (TB)1	72	96	144	192	240	288	360	504
Maximum Effective Capacity with Expansion Kit (TB)1	288					384	408	N/A
Maximum Effective Managed Capacity2	3456						4896	6048

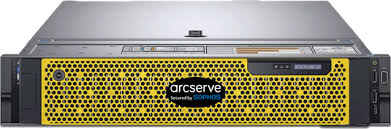

Form Factor	2U
Base RAM	192GB (12x16)							384GB (12x32)
Max RAM	384GB							768GB
SSD	2x 1.9TB (RAID1)
CPU	Dual Intel® Xeon® Silver 4114
RAID Controller	PERC H730P Minicard, 2GB NV Cache
RAID Configuration	RAID6
Drive Bays	16xHDD, 2xSSD
SAS 12G HDD	5x8TB	5x8TB	8x8TB	10x8TB	12x8TB	10x12TB	12x12TB	16x12TB
Optional Expansion Kits
DIMM Slots	24
Broadcom 5720 1GB LAN Ports	4 on-bard
SAS 12Gbps HBA External Controller	Included
Intel X550 Dual Port 10G Base-T Adapter	Optional							Included
Intel X710 Dual Port 10G SFP+ FC Adapter	Optional
QLogic 2692 Dual Port 16Gb Fibre Channel HBA	Optional
Remote Hardware Management	iDRAC 9 Enterprise
Power Supplies	Dual, Hot-Plug, Redundant Power Supply (1+1), 750 W
Weight	75lbs (34kg)
In-rack Dimensions3	26.7" x 17.1" x 3.4" (67.9 cm x 43.4 cm x 8.7 cm)
Outer Dimensions4	29.6" x 19.0" x 3.4" (75.1 cm x 48.2 cm x 8.7 cm)
Packaging Dimensions	38" x 26" x 12" (97 cm x 66 cm x 30 cm)

¹ Effective capacity takes global source deduplication into account and is equal 3x the usable capacity. Actual backup capacity may vary, depending on data types, backup type and schedule, as well as other factors.
² Maximum Effective Managed capacity of backups managed from a single management console connected to up to six identical stacked appliance models 9012-9048, and up to twelve identical stacked appliance models 9072DR-9504DR, with largest available expansion kits
³ In-rack dimensions exclude bezel, front panel and power supply handles.
⁴ Outer dimensions include bezel, front panel and power supply handles.
